Explore Rough Rider Utility Trailer

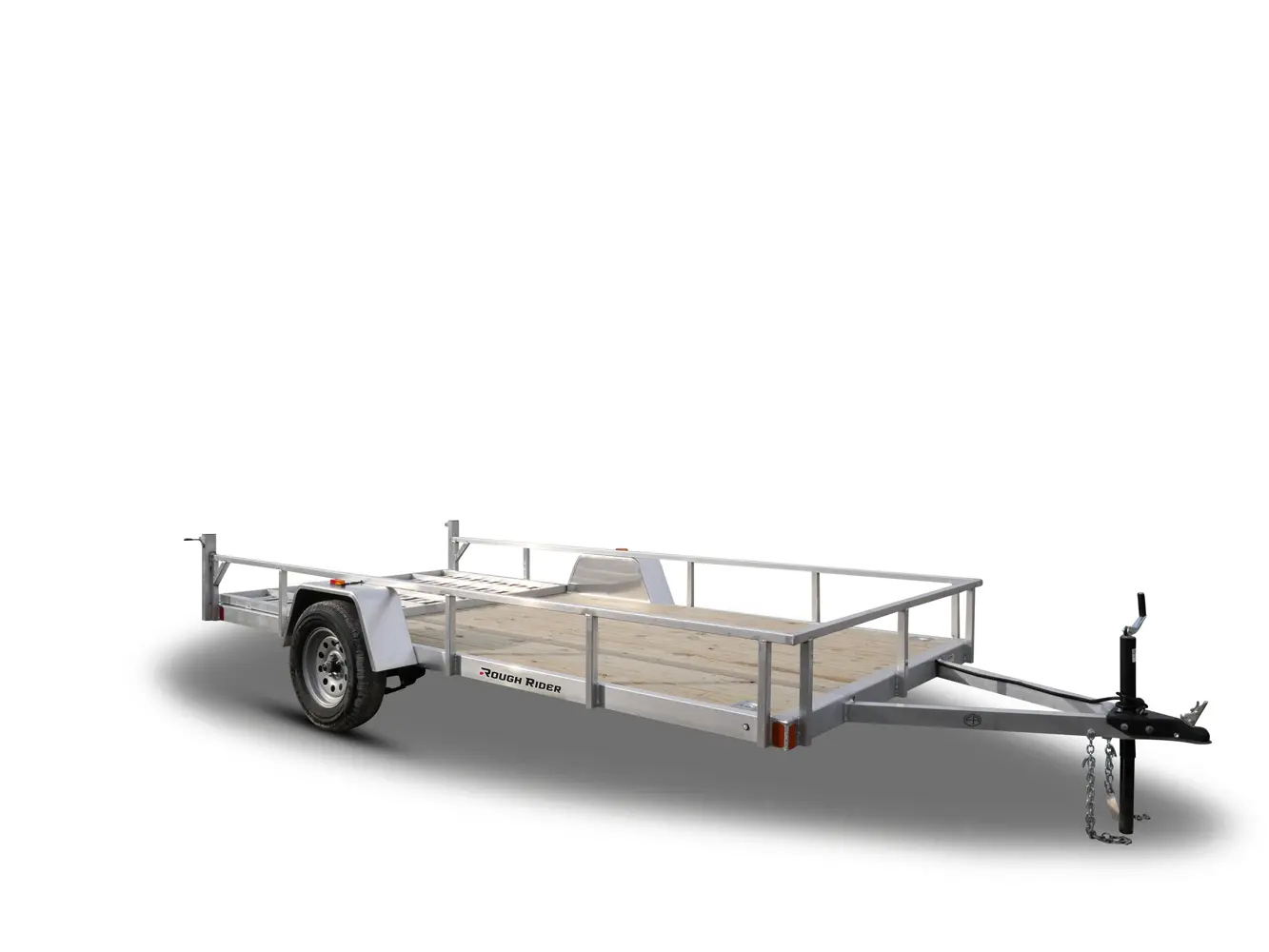

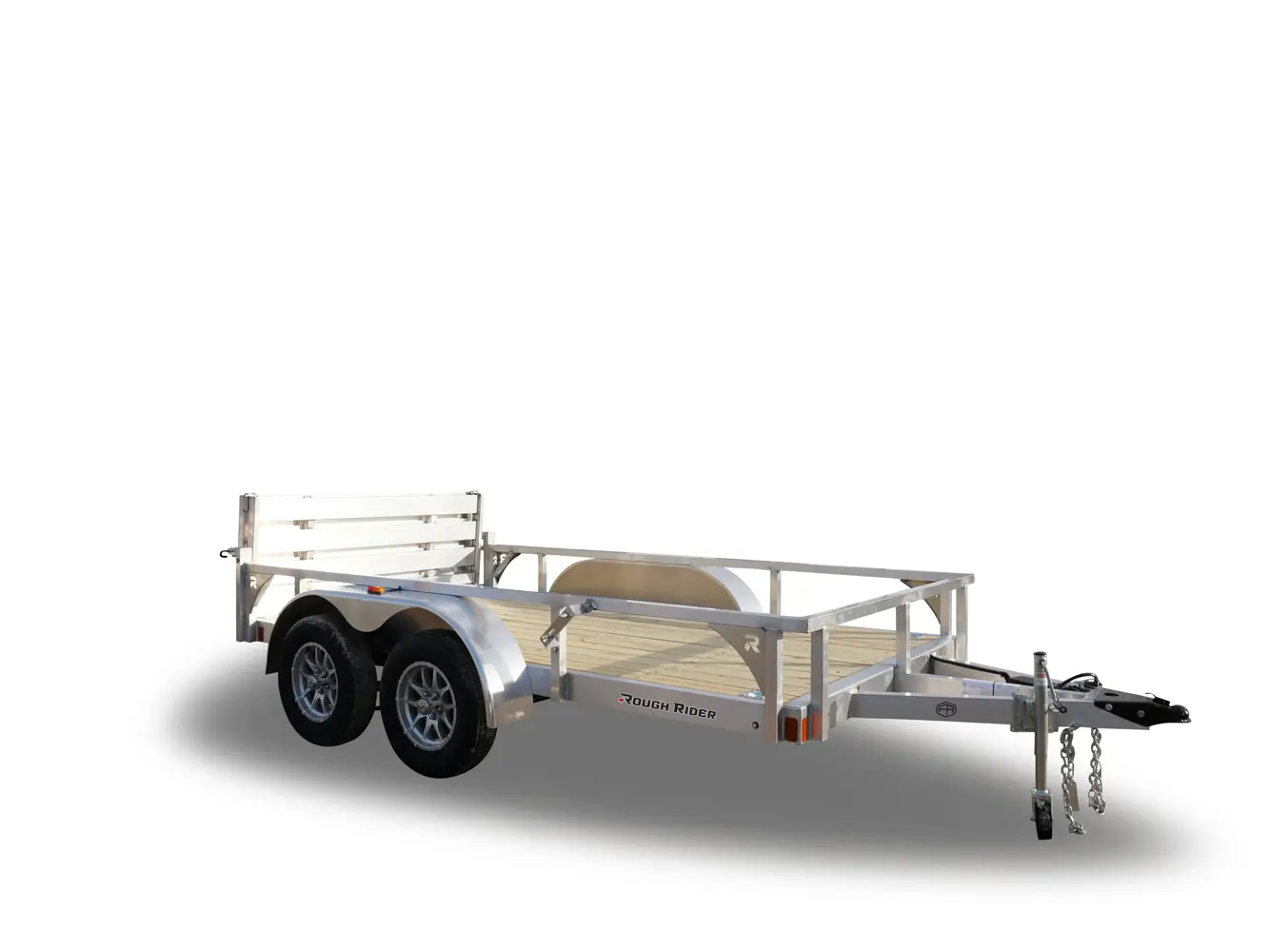

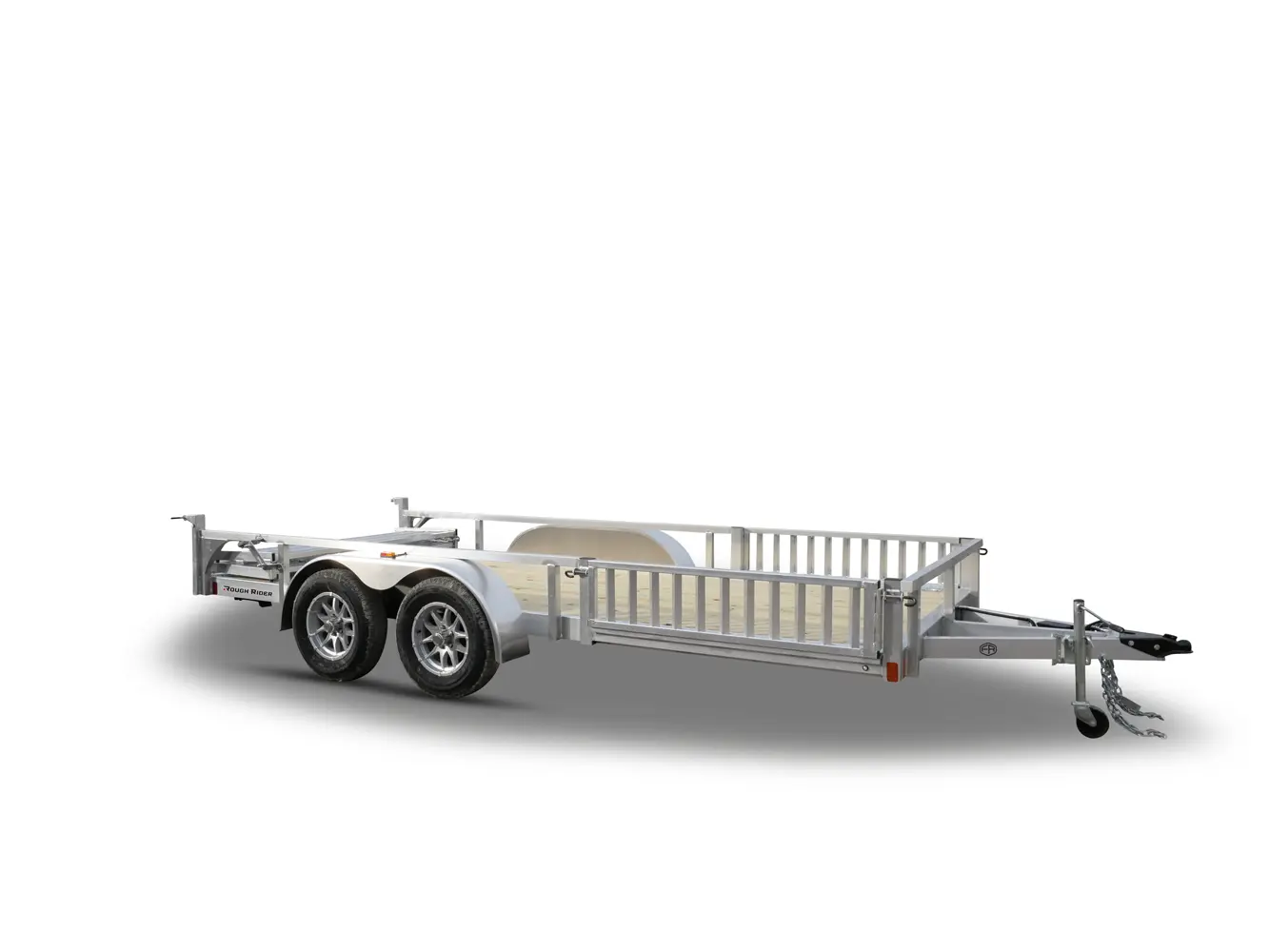

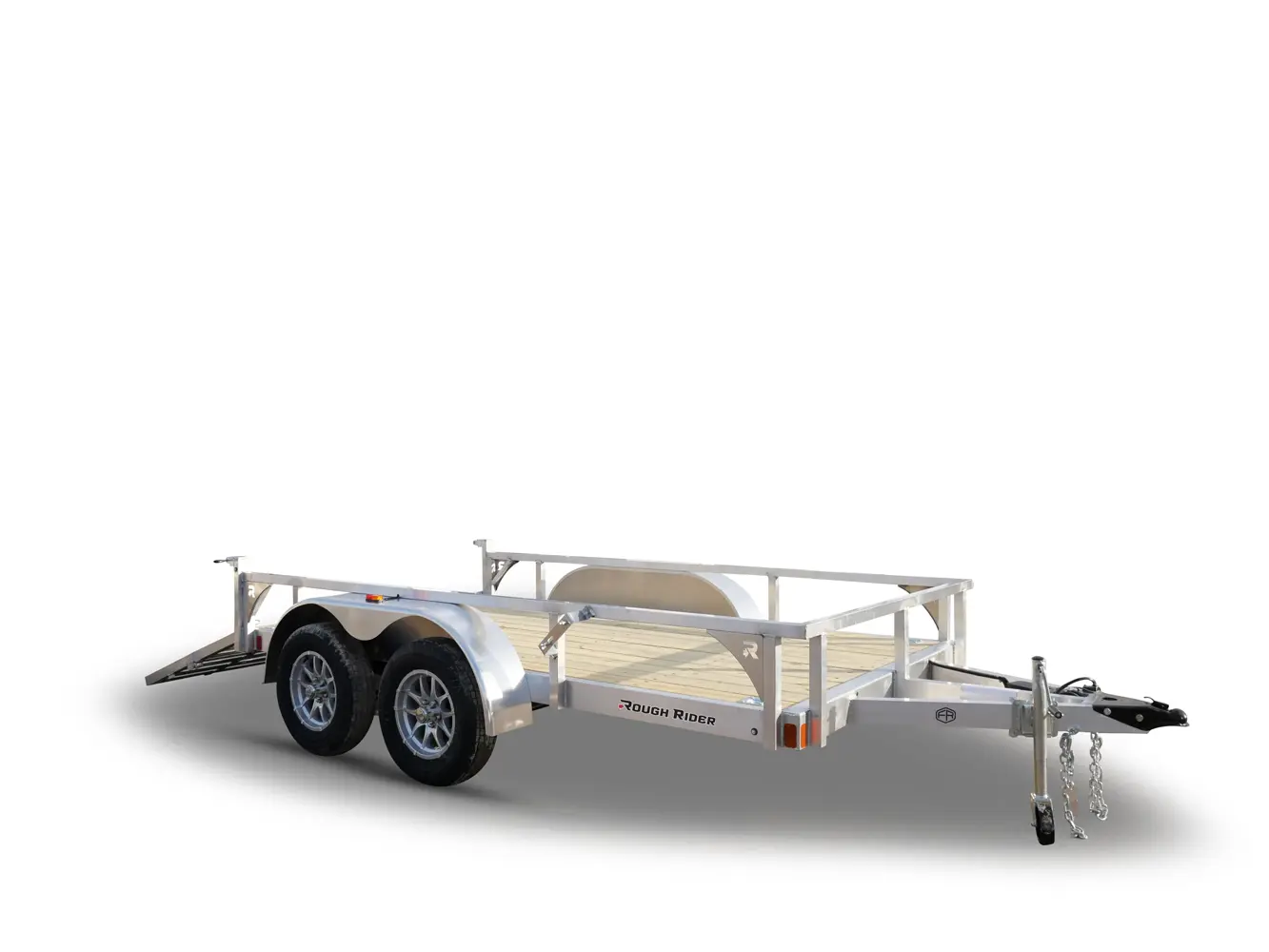

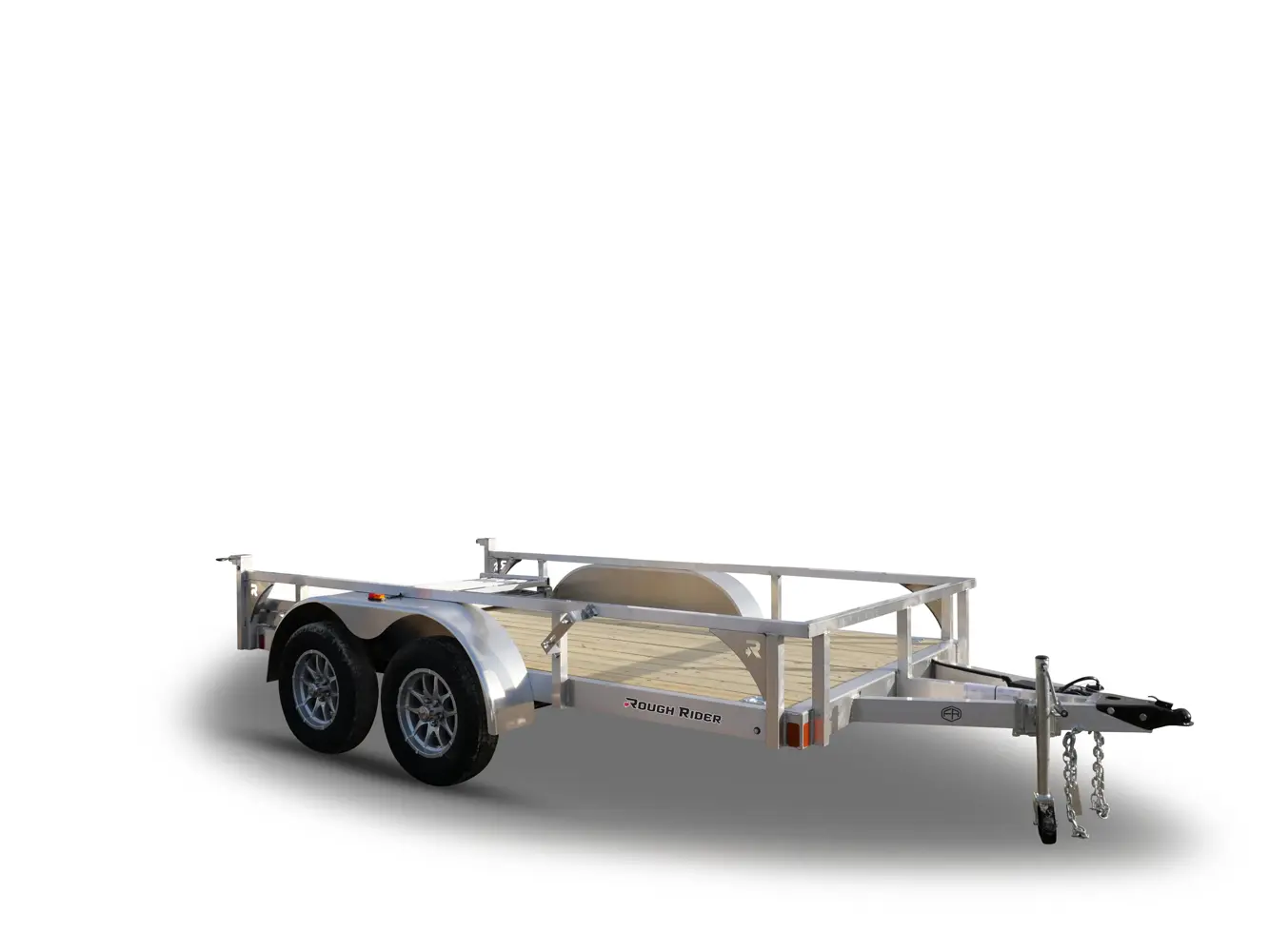

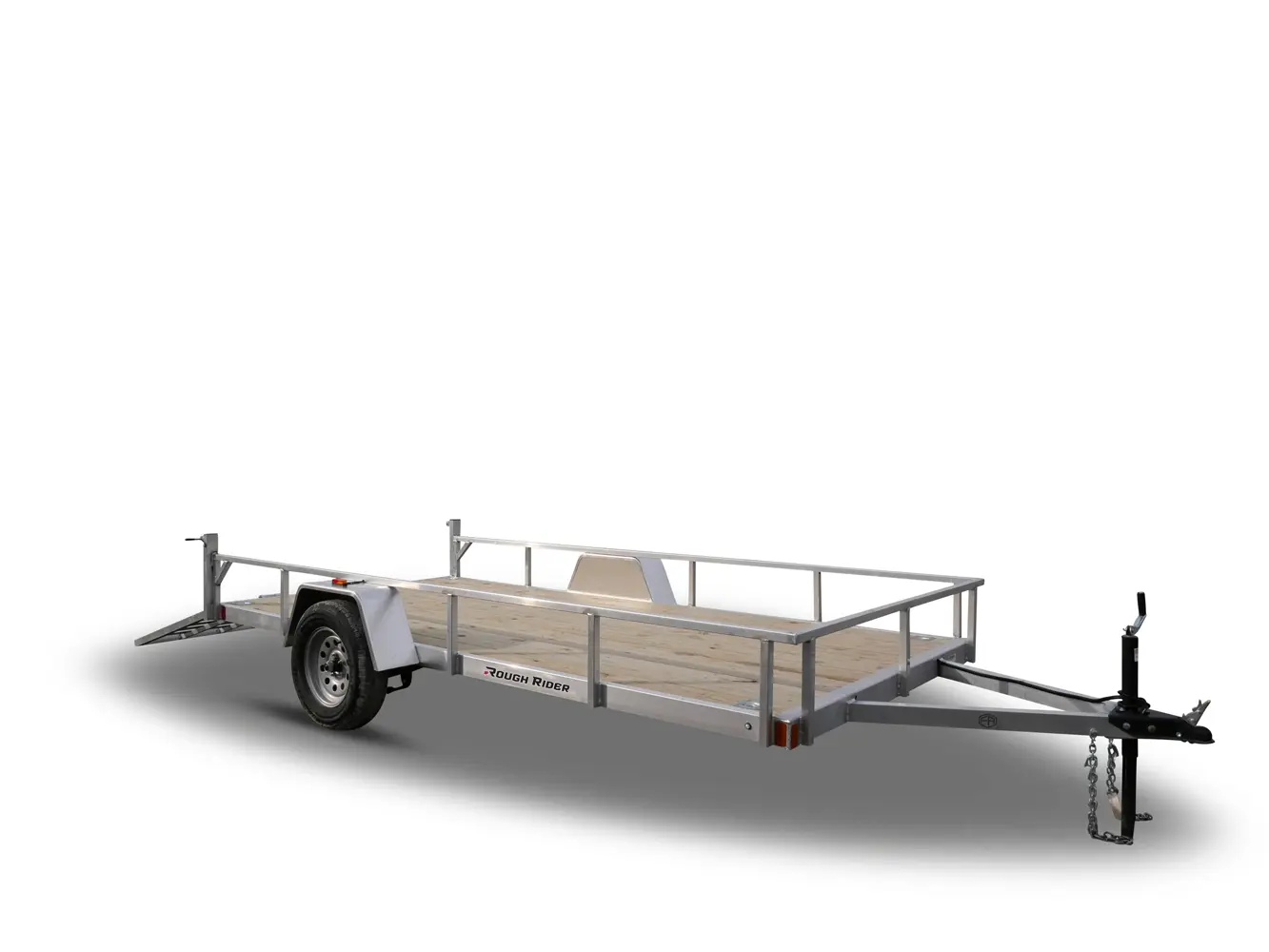

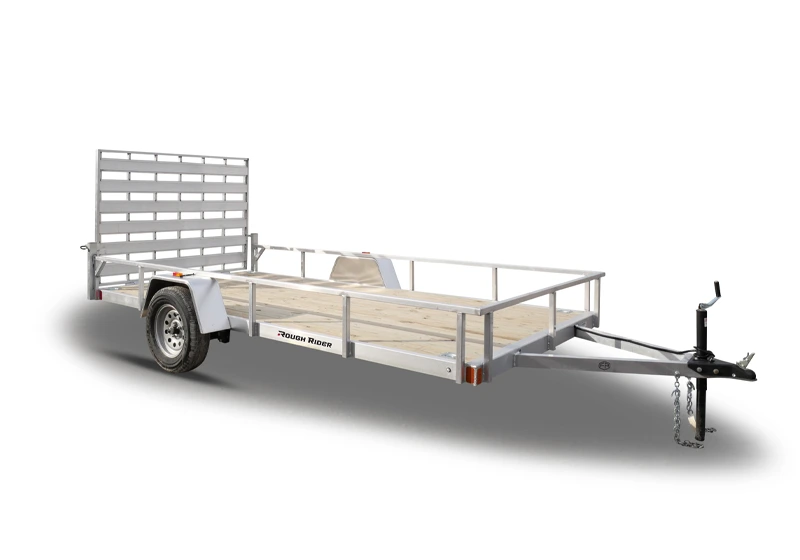

Rance Aluminum Rough Rider Utility Trailers feature aluminum tube frame and side rails, 5/4" x 6" treated deck board floors, 5,000 lb. d-ring tie downs, LED clearance and tail lights, and 3,500 lb. spring axle. (Photos may show some optional equipment.)
-
- 2" x 4" Alum Tube Frame (SA Models)
- 2" x 5" Alum Tube Frame (TA Models)
- 5,000 lb. D-Ring Tie Downs
- A-Frame Tongue
- 1,000 lb. Top Wind Tongue Jack
- Silver Mod Wheels with Radial Tires
- 5/4" x 6" Treated Deck Boards
- 13" Tall Tube Side Rails
- 3,500 lb. Spring Axles
- Electric Brakes w/Breakaway System (TA Models)
- LED Clearance Tail Lights
- Aluminum Hinges with Grease Zerks
- Spring Loaded Ramp Gate Latches
-
- Fold Down Stabilizer Jacks
- Sping Up Tongue Jack
- Sand Pad for Tongue Jack
- Surface Floor Mount D-Ring
- Recessed Floor-Mount 5,000 lb. D-Ring Tie Down
- Recessed Floor-Mount 6,000 lb. Swivel D-Ring Tie Down
- Wheel Chock (Recessed, Flip Up)
- Wheel Chock (Removable)
- Aluminum Plank Flooring (Utility Models Only)

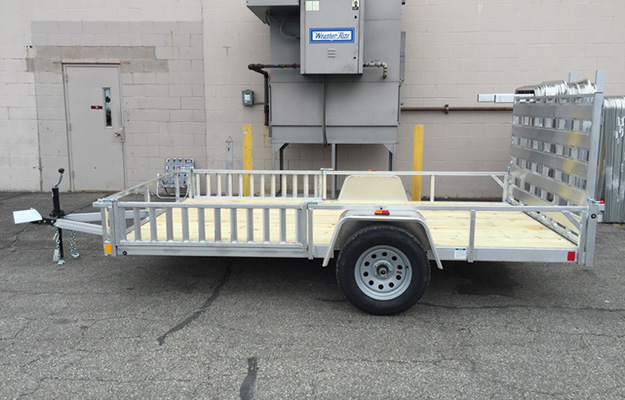

- Side Ramp Gate for Utility Models (54" Wide, Models 12' and Longer)

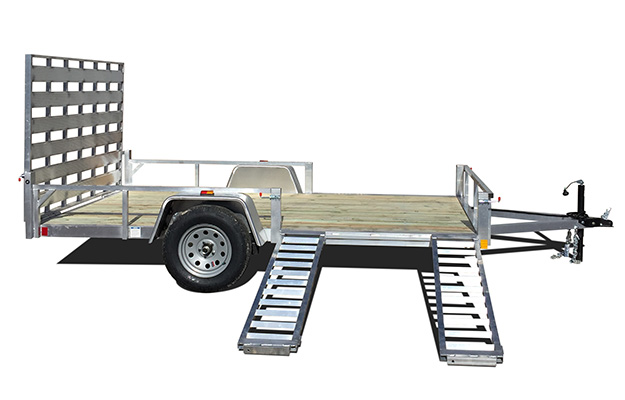

- 5' Removable Side Rail Ramps (82" Width)(Models 12' and Longer)

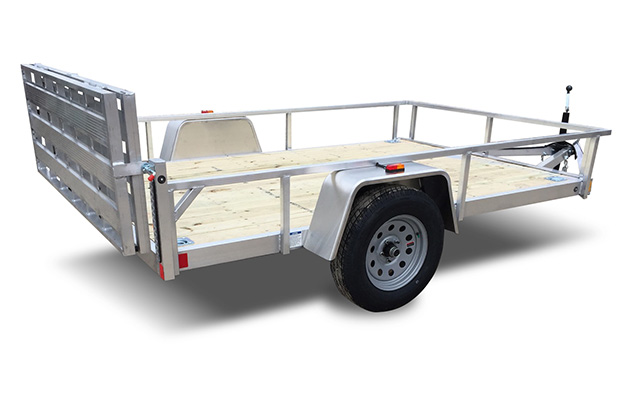

- Bi-Fold Ramp Gate
- 6" Integrated Ramp Flap Extension
- Triple Tube Tongue
- 16" on Center Floor Cross Members (Utility Models)

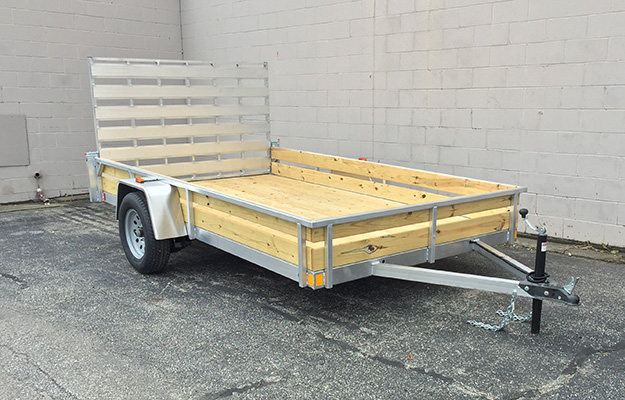

- Wood Side Boards (Standard Rail Heights)(2-5/4" x 6" Treated Boards)
- ATP Enclosed Side Rails (Standard Rail Height)
- 24" Side Rail Upgrade with Open Sides
- 24" Side Rail Upgrade with Wood Side Boards (3-5/4" x 6" Treated Boards)
- 24" Side Rail Upgrade with ATP Enclosed Side Rails
- Delete Side Rails
- Spare Tire Carrier
- Torsion Axle Upgrade
- Electric Brakes w/Breakaway Battery (SA Models)
- ST205/75 R15 LRC Radial Tire with Aluminum Rim Upgrade
- ST205/75 R15 LRC Radial Spare Tire
- ST205/75 R15 LRC Radial Spare Tire with Aluminum Rim
Specifications
| RRU558SA | RRU5510SA | RRU6510SA | RRU6512SA | RRU6514SA | RRU6514TA2 | RRU6516TA2 | RRU6518TA2 | RRU6520TA2 | RROD468SAE | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 2990 lb. |
| Payload Capacity: | 2440 | 2405 | 2375 | 2330 | 2285 | 5775 | 5715 | 5620 | 5525 | 2145 |
| Exterior Length: | 12' 3" | 14' 3" | 14' 3" | 16' 3" | 18' 3" | 18' 3" | 20' 3" | 22' 3" | 24' 3" | 12' 11" |
| Exterior Width: | 7' 4" | 7' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 3" | 8' 3" | 4' 11" |
| Exterior Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Interior Length: | 8' 0" | 10' 0" | 10' 0" | 12' 0" | 14' 0" | 14' 0" | 16' 0" | 18' 0" | 20' 0" | 8' 1" |
| Interior Width: | 5' 6" | 5' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 4' 6" |
| Interior Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Rear Door Type: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Rear Door Width: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Rear Door Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2" |
| Curb Weight: | 550 | 585 | 615 | 660 | 705 | 1225 | 1285 | 1380 | 1475 | 845 |
| Hitch Weight: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Hitch Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Platform Height: | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 26 |
| Axle: | 1 - 3,500 lb. | 1 - 3,500 lb. | 1 - 3,500 lb. | 1 - 3,500 lb. | 1 - 3,500 lb. | 2 - 3,500 lb. | 2 - 3,500 lb. | 2 - 3,500 lb. | 2 - 3,500 lb. | 1 - 3,500 lb. |
| Suspension: | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring |
| Brakes: | Optional | Optional | Optional | Optional | Optional | 4-10" Electric | 4-10" Electric | 4-10" Electric | 4-10" Electric | 2-10" Electric |
| Tires: | ST205/75 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST205/75R15 R15 (C) | ST145/R12 (E) |
| Wheels: | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel |
| Main Frame: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Floor: | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | 5/4" x 6" Treated | Alluminum |
| Walls: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
